MOHAN CREATIVE PAN V1 | Real GUI Tour

Real MOHAN CREATIVE PAN V1 interface showing Meet MOHAN CREATIVE PAN

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

THE V1 INTERFACE

Meet MOHAN CREATIVE PAN

The V1 interface brings spatial positioning and creative movement together.

Upper panel shows left/right position, width and front/back depth.
Lower panel selects effects and shows a reference movement curve.
FX Mix determines how much of the selected movement is heard.

The captured state has FX Power OFF and FX Mix 0%. It is not an audible demonstration.

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

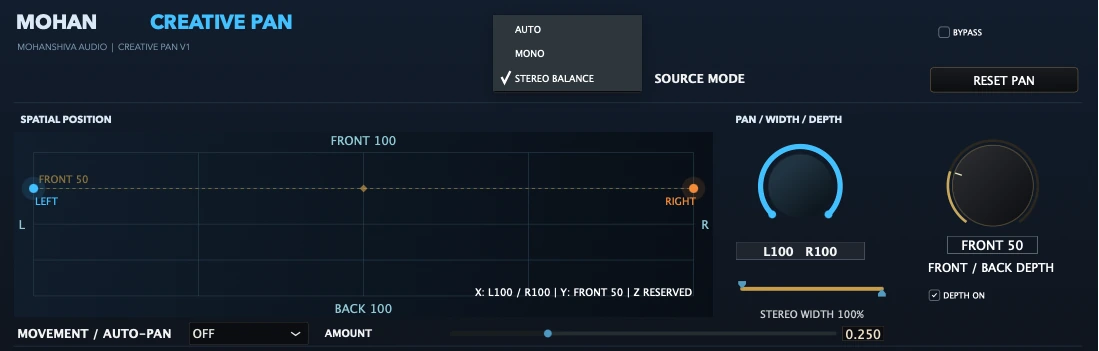

SOURCE MODE

Choose a source mode

The supplied interface offers AUTO, MONO and STEREO BALANCE source modes.

Choose a source mode from the top menu.
MONO and STEREO BALANCE are selectable choices.
RESET PAN is available in the same section.

AUTO source mode does not imply V1 has AI instrument recognition.

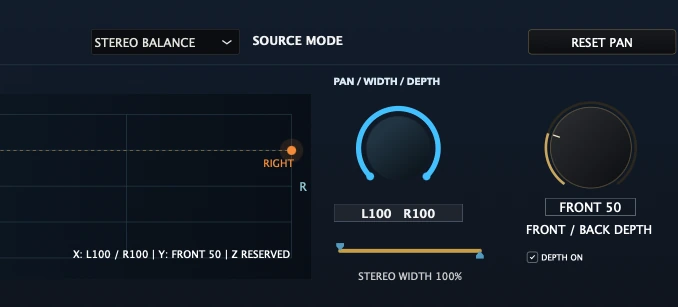

Real MOHAN CREATIVE PAN V1 interface showing Shape the stereo position

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

PAN / WIDTH / DEPTH

Shape the stereo position

The spatial panel groups stereo balance, width and front/back depth controls.

View the left/right position on the spatial graph.
Set the stereo width in the same panel.
Enable Depth On for front/back positioning.

Depth is a creative control, not a measured physical distance.

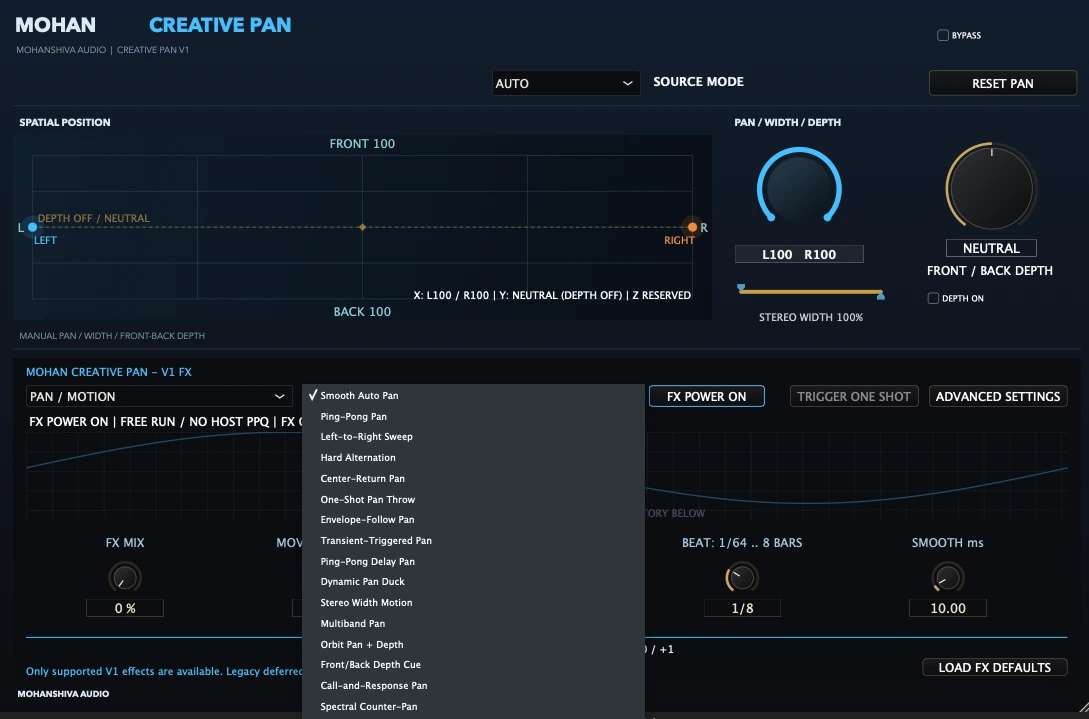

Real MOHAN CREATIVE PAN V1 interface showing Make sound move

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

PAN / MOTION

Make sound move

The Pan/Motion list includes Smooth Auto Pan, Ping-Pong Pan, Stereo Width Motion and Multiband Pan.

Choose a motion effect from the menu.
Adjust FX Mix and Movement Depth.
Frequency-related Multiband Pan is within Pan/Motion, not a separate top-level category.

Effect names are visible in the actual GUI; their final DSP behaviour still requires validation.

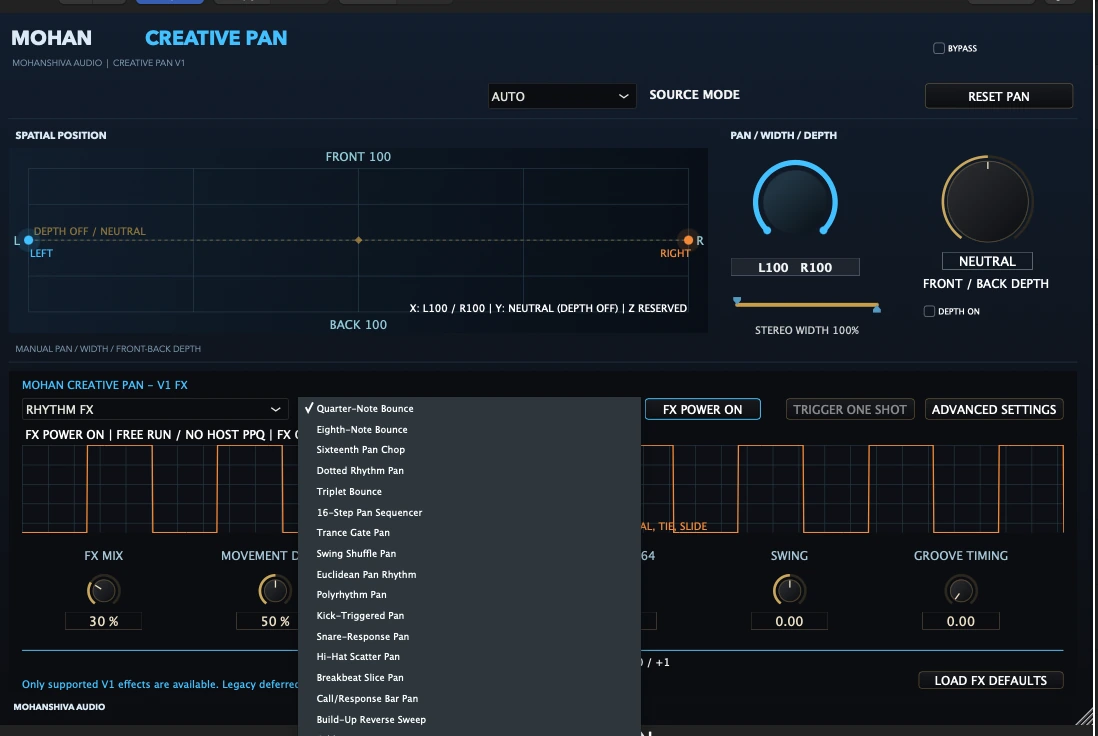

Real MOHAN CREATIVE PAN V1 interface showing Follow the groove

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

RHYTHM FX

Follow the groove

Rhythm FX includes Quarter-Note Bounce, Sixteenth Pan Chop and a 16-Step Pan Sequencer.

Select a beat-based pan movement.
Adjust swing, groove timing, mix and movement depth.
Use host tempo sync when supported by the DAW.

Host sync and all effect contracts require complete commercial testing.

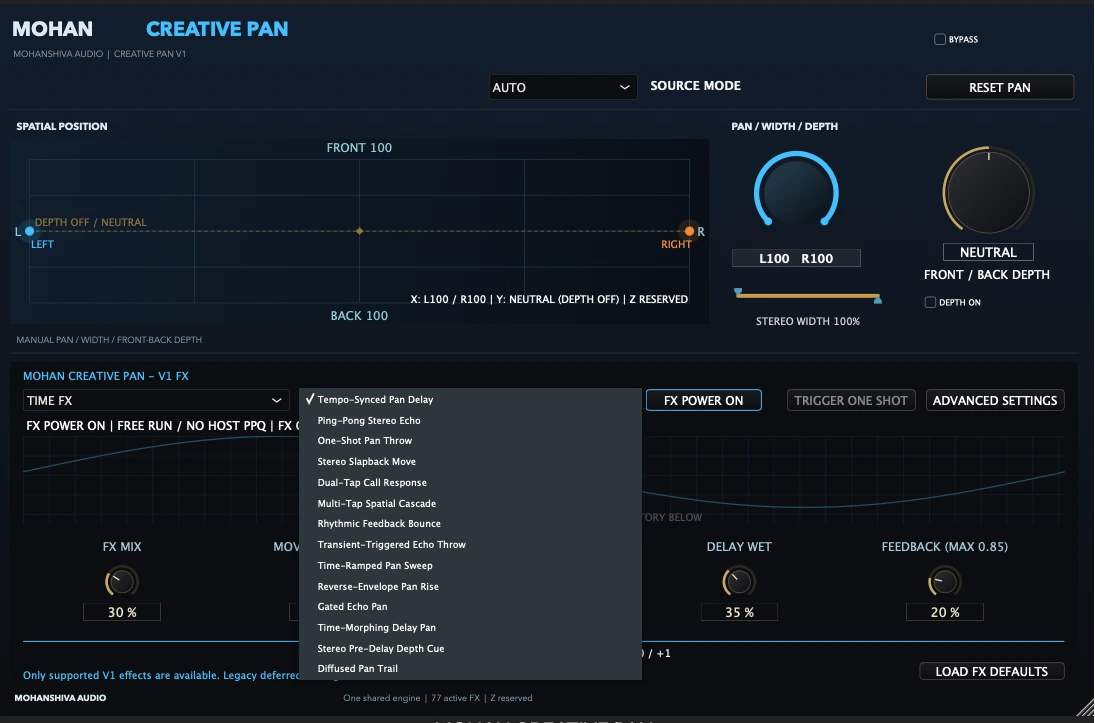

Real MOHAN CREATIVE PAN V1 interface showing Move with time

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

TIME FX

Move with time

Time FX lists Tempo-Synced Pan Delay, Ping-Pong Stereo Echo and Stereo Slapback Move.

Choose a time-based movement preset.
Some time effects expose Delay Wet and Feedback controls.
The movement curve is a reference shape, not live audio.

Actual processed audio should replace conceptual demos before release.

Real MOHAN CREATIVE PAN V1 interface showing Create smooth or stepped motion

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

LFO

Create smooth or stepped motion

The LFO menu shows Sine, Triangle, Square, Saw and Sample-and-Hold variants.

Choose the waveform or movement pattern.
Adjust movement depth, beat division and smoothing.
Free-run and host-synced operation are represented in the interface.

The graph explicitly states it is a reference waveform, not a live audio analyser.

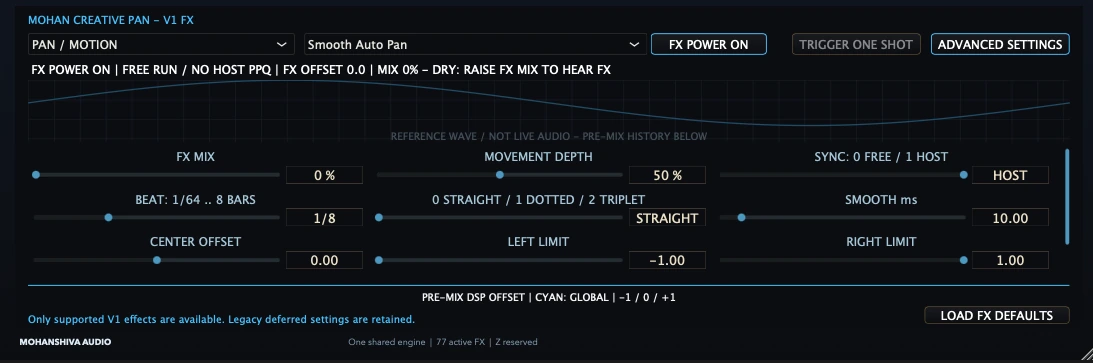

Real MOHAN CREATIVE PAN V1 interface showing Refine every movement

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

ADVANCED SETTINGS

Refine every movement

The expanded FX settings reveal more precise timing and pan-range controls.

FX Mix, Movement Depth, Sync and Beat are visible.
Center Offset and Left/Right Limits define a movement range.
Smoothing and straight/dotted/triplet timing are also shown.

This is a crop of the actual V1 advanced panel.

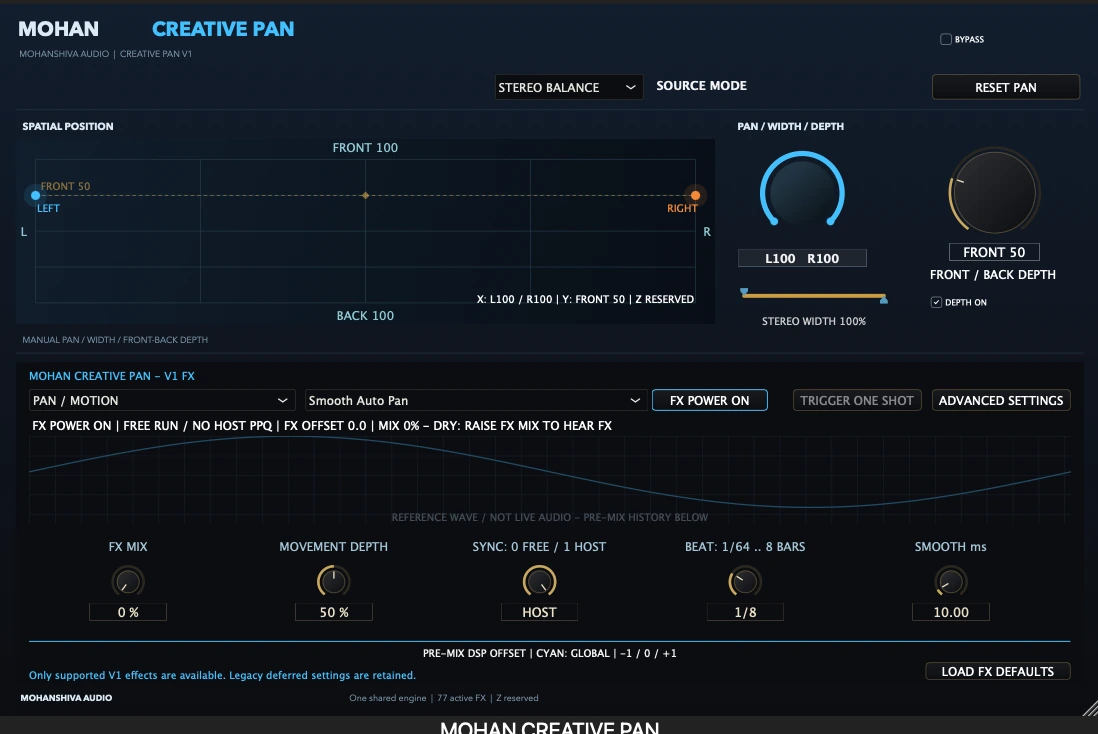

Real MOHAN CREATIVE PAN V1 interface showing Move forward and back

Actual V1 GUI screenshot · Captured during development · Cropped to remove DAW chrome

DEPTH EXAMPLE

Move forward and back

The GUI shows Stereo Balance with Depth On and FRONT 50 selected.

The spatial display reflects the selected depth value.
Pan, width and depth remain visible together.
The FX controls stay accessible below.

A visible control state does not by itself prove perceptual distance performance.
